Calipers Box round 2 (post 1/2)

Still working on box#2! (I borked my leg and picked up a dining-table project, so this is still ongoing)
This means I have the opportunity to take more photos of the steps I missed last time.

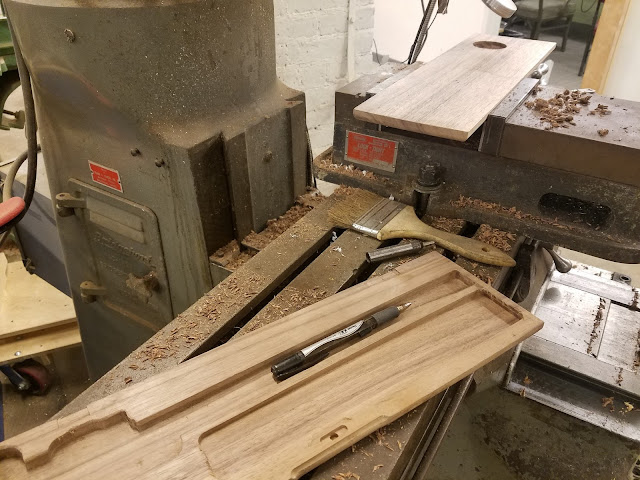

After milling out the calipers profile, etch-a-sketch style and seating the tool in the bottom half, I traced out the remainder on the top blank. This one needed a void for the round bezel-dial and not much else.

Here I'm also matching up the ends to mark where the hinges go.

walnut board with pocket in the shape of callipers and pencil markings for planned hinge pockets

Milling out the bezel void with a ball endmill for extra aesthetics. Hinge and magnet mortises happened afterwards.

circular pocket with rounded bottom edge done with conversational CNC mill

I was lazy and decided to lasercut all my inlay pieces. They are 3/32" thick and would've been a pain.

pocket for closure magnet with matching lasercut pine inlay cover
